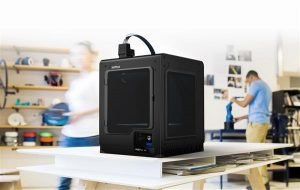

Zortrax M200 Plus

Recently Improved Ultra Reliable Desktop 3D Printer

The Zortrax M200 Plus desktop 3D printer is an improved version of the Zortrax M200 and comes with features such as a touchscreen display, improved hotend and material end detection.

£1,782.00 (inc. VAT)

Overview

A little bit about the Zortrax M200 Plus

Build Volume

20 x 20 x 18.5 cm

Precision

X, Y: 1.5 microns (0.0015mm), Z: 1.25 microns (0.00125mm)

Min. Layer Height

90 microns (0.09 mm)

Warranty

24 months for individuals, 12 months for companies

Features

Why choose this 3D printer?

1
2
3
4
5
6
1

Touch Screen

2

Material End Detection

3

V3 Hotend & New Nozzle Geometry

4

WiFi Connectivity

5

Upgraded Cooling System

6

Built In Camera

Videos

Sit back and enjoy some videos about this 3D printer

Coming Soon…

Please subscribe to the Dream 3D YouTube channel…

Reviews

See what the critics say

Coming Soon…

Box Contents

Whats included in the box?

  • Fully Assembled & Tested Zortrax M200 Plus
  • Door & Side Covers
  • Spool of Filament
  • Power Cable
  • Filament Spool Holder & Filament Guide
  • Perforated Build Plate
  • Safety Gloves
  • Safety Glasses
  • SD Card with compatible USB SD card reader
  • Allen keys
  • Cutting knife
  • Scalpel
  • Spatula
  • Nozzle Key
  • Needle
  • Pliers
  • Tweezers

Specification

Lets get down to detail

Device Features
Build volume200 x 200 x 180mm (7.9 x 7.9 x 7.1 in)
Material containerSpool
Material diameter1.75 mm (0.069 in)
ConnectivityUSB, RJ45, WiFi
ExtruderSingle (upgraded for experimental materials)
New cooling systemDouble fan and extruder cooling
HotendV3 and nozzle with new geometry
Material runoutMechanical endstop
Build Plate Perforated plate with pogopins instead of small connector
SupportMechanicaly removed
MaterialsM Series dedicated materials (recommended) + new Z-SEMIFLEX
External materialsYes
Platform levellingAuto
Touchscreen 4″ IPS 800×480
Printing
Print technologyLPD (Layer Plastic Deposition) / FFF
Layer resolution90-390 microns
Minimal wall thickness400 microns
Dimensional accuracy+/- 0,2%*
Angle accuracy+/- 0,2%**
Maximum printing temperature (extruder)290° C (554° F)
Build platform
Heated
ProcessorQuad Core
Operation systemAndroid
Maximum platform temperature105° C (221° F)
Ambient operation temperature20° – 30° C (68°-86° F)
Storage temperature0° – 35° C (32°-95° F)
AC input110 V ~ 5.9 A 50/60 Hz
240 V ~ 2.5 A 50/60 Hz
Maximum power consumption320 W
Software
Software bundleZ-SUITE 2.0
Supported file types.stl, .obj, .dxf, .3mf
Supported operating systemsMac OS X / Windows 7 and newer versions
Output formatZCODEX
