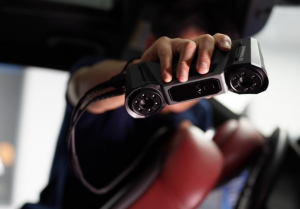

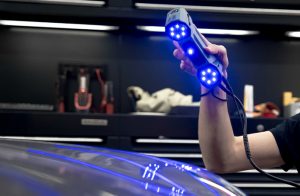

Shining 3D FreeScan Combo Handheld 3D Scanner

The powerful FreeScan Combo packs dual light sources in an ultra-compact shell, measuring just 193x63x53mm.
It’s equipped with both blue laser and infrared VCSEL technology and weighs in at only 620g.
This lightweight, handheld 3D scanner offers four modes:
• multiple-line scanning
• single-line scanning
• fine scanning
• infrared scanning

With its versatile scan modes and technologies, the FreeScan Combo can adapt to numerous use cases.
lt achieves metrology-grade precision for inspection, reverse engineering, product design, additive
manufacturing, and other demanding applications in a wide range of sectors.

Please scroll down to see full specs, video, pictures and more!

£16,580.00 (inc. VAT)

Overview

Some of the Key Specs at a glance:

Scanning Technology

BLUE LASER + INFRARED LIGHT
Combination of blue laser and infrared light sources meets the needs of diverse industrial 3D scanning scenarios

4 SCANNING MODES

  • 13×2 = 26 cross laser lines
  • 7 parallel laser lines
  • 1 = single laser line
  • Infrared mode: for scanning without index marks

Accuracy

  • Accuracy Up to 0.02 mm
  • Volumetric Accuracy: 0.02 + 0.033 mm/m

Operation

  • Scan Speed: 1,860,000 points/s
  • Scan Depth: 360 mm
  • Max. FOV: 520 x 510 mm
  • Point Distance: 0.05mm-3mm
  • Light weight 620g

Warranty

12 months

Features

Hover on the numbers to see the features

1
2
3
4
5
1

Infrared VCSEL – No markers needed for feature-rich workpieces. Infrared light source can be used directly to scan quickly.

2

Blue Laser26 laser lines + Single laser line + 7 parallel laser lines

3

1.3 MP Camera

4

IP50 CertificationProtected from limited dust ingress.

5

Durable Aluminium Case

Videos

Specification

Lets get down to detail

FreeScan Combo Technical Specifications

Scan Mode Multi-Line Scan Single Line Scan Fine Scan Infrared Scan
Light Source 26 Laser lines One laser line Seven Parallel laser lines VCSEL Light Source
Working Distance 300mm 300mm 200mm 300mm
Scan Accuracy Up to 0.02mm Up to 0.02mm Up to 0.02mm
Volumetric Accuracy 0.02+0.033mm/m 0.02+0.033mm/m 0.02+0.033mm/m 0.5+0.1mm/m
Scan speed 1,860,000 points/s 1,860,000 points/s 1,860,000 points/s 2,250,000 points/s
Scan Depth 360mm 360mm 360mm 1240mm
Max FOV 520mm x 510mm 520mm x 510mm 520mm x 510mm 600mm x 600mm
Point Distance 0.05mm-3mm 0.05mm-3mm 0.05mm-3mm 0.1-3mm

Technical Requirements

  • USB 3.0 Standard connection
  • 12V , 5.0A Power input
  • Working temperature -20 ~ 40℃
  • Working humidity 10 ~ 90%
  • Certification CE, FCC, ROHS, WEEE, KC, FDA, UKCA, IP50
  • Recommended Computer Configuration – OS: Win10/11, 64bit; Graphics Card: NVIDIA GTX/RTX series cards, higher or equal to GeForce RTX 3060; Video memory : ≥ 6GB; Proccesor: I7-10700; Memory: ≥ 32GB
