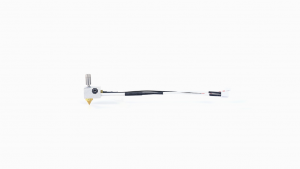

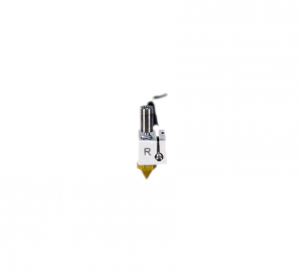

Raise3D E2 Right Hot End Assembly includes a brass nozzle, aluminium heating block, throat tube (built-in PTFE tube), thermocouple, heating rod and the terminal. The black wire is the thermocouple and the white wire is the heating rod. The voltage is 24V, and the power is 25-30W. Raise3D E2 Right Hot End Assembly is suitable for V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle. The heating block has been marked for the right extruder.
- Applicability and compatibility:Raise3D E2 Right Hot End Assembly is compatible with the Raise3D E2 printer; the thermocouple interface is terminal, which is easy to install, and can be directly inserted into the extruder controller board.
- Anti-leakage and anti-clogging design: The nozzle of the extruder is seamlessly connected to the throat tube to prevent leakage or blockage of filaments.
- Heat resistance: The maximum working temperature is 300°C.
- Nozzle can be replaced: V3 Brass Nozzle 0.4mm and V3 Hardened Nozzle.
1x aluminium heating block
1x heating rod (voltage is 24V, power is 25-40W)
1x 0.4MM brass nozzle
1x 17.7 mm throat tube
|Material||Aluminium + Titanium Alloy + Brass|
|Throat tube length||17.7mm|
|Throat tube material||Titanium alloy|
|Aluminium heating block size||18 x 12 x 12mm|
|Working temperature||300℃ max.|
|Package size (WxHxD)||130x110x20mm|
