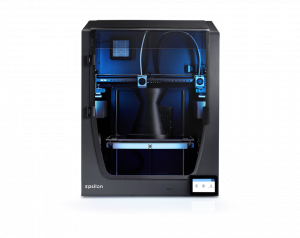

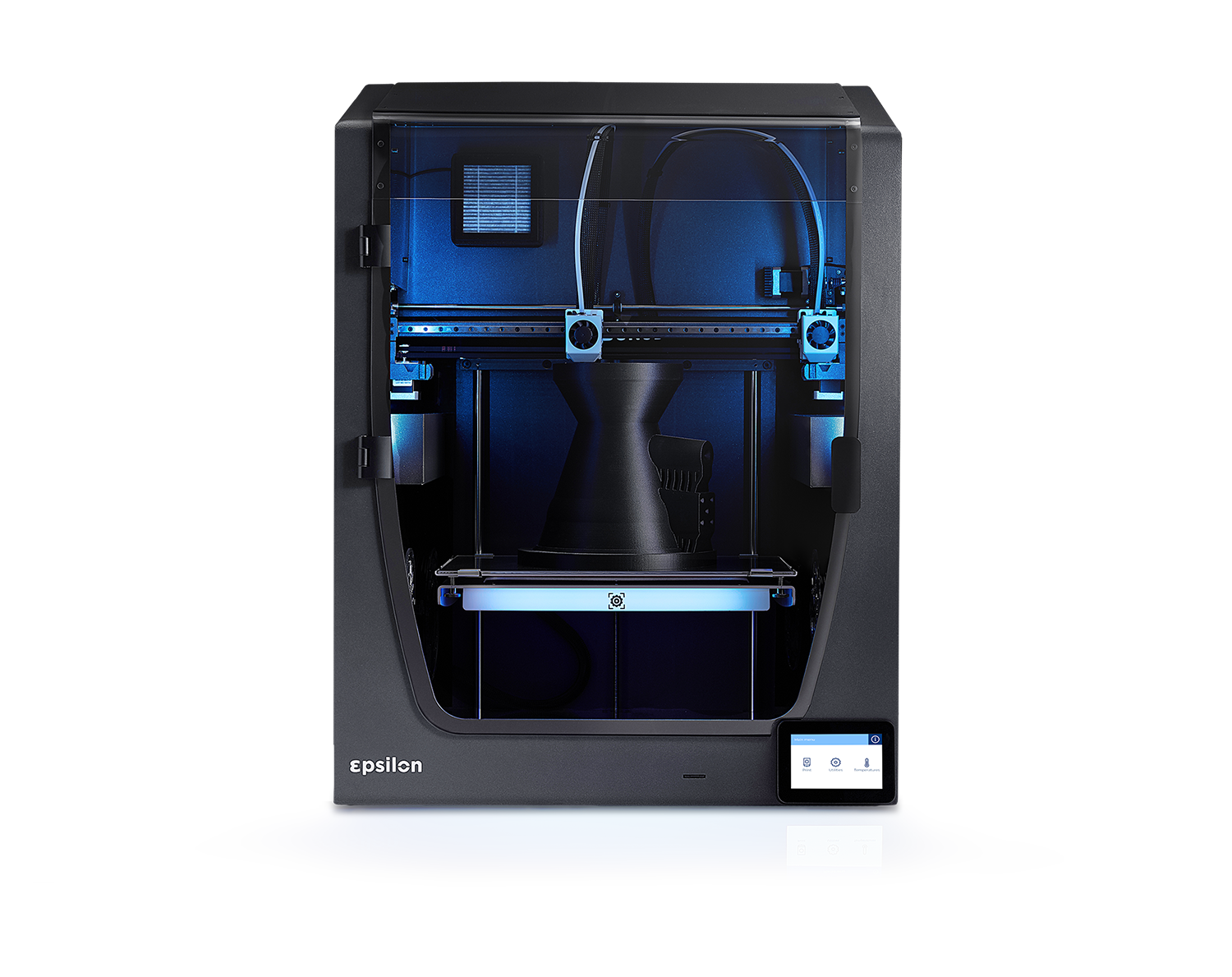

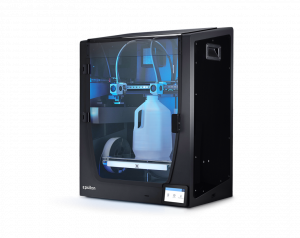

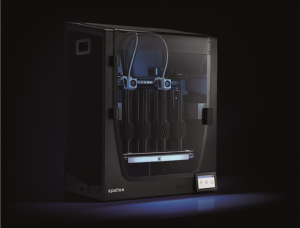

BCN3D Epsilon (W50)

The BCN3D Epsilon is a powerful professional 3D printer, designed to deliver large-scale parts with industrial-grade materials, thanks to features such as its passive heated chamber/full enclosure and powered by Independent Dual Extruder (IDEX) system, the BCN3D Epsilon delivers exceptionally strong functional parts with quality and precision.

Developed to enable innovators -from manufacturers to engineers to designers-, to easily create functional parts, prototypes, manufacturing jigs and tools; and anything else you can imagine, with the highest throughput for maximum efficiency.

The BCN3D Epsilon is a FFF workbench 3D printer ideal for:

– Prototyping applications and fabrication of small-batch projects with the most advanced materials. Including the IDEX technology, a big volume (more than 50 liters of capacity) and the duplication and mirror modes, BCN3D Epsilon is able to provide the best number of solutions for different markets.

-Low volume production: With the duplication and mirror printing strategies
combined with the best industrial materials.

-End-use parts: Able to print with fiber filled materials providing the best resistance and endurance.

-Tooling: Able to print with different nozzles providing ultra-resistant parts.

-Prototyping: Able to print with ABS, PP, and PA for the best prototypes or concepts.

£7,859.94 (inc. VAT)

Overview

A little bit about the BCN3D Epsilon. Please scroll down to see full specs

Build Volume

420mm x 300mm x 400mm

Precision

X & Y: 1.25 microns, Z: 1 micron

Layer Height

0.05 – 0.5mm

Print Material

PLA, PVA, PET-G, TPU, ABS, PP, PA, Fiber filled materials.

Only with Hotend X (0,6mm): PP GF30, PAHT CF15.

Warranty

12 months

Features

Hover on the numbers to see the features

1
2
3
4
5
6
7
1

Independent Dual Extruder (IDEX) System

2

5” full color capacitive touchscreen

3

Printing volume: 420mm x 300mm x 400mm X,Y,Z

4

Air filtering – Category H13 HEPA filter

5

Heated bed up to 120ºC.

6

The BCN3D Epsilon counts on a high performing extrusion system, using the high-tech Dual Drive Gears by Bondtech and e3D™ hotends. As a result, the BCN3D Epsilon offers a solid and reliable outcome, no matter the filament used.

7

BCN3D Epsilon has been designed to support the most demanding applications thanks to features such its full enclosure and the passive heated chamber. That’s why BCN3D has partnered with renowned chemical companies BASF and Mitsubishi Chemical (MCPP) to develop new references for the BCN3D Filaments and ensure the readiness of the BCN3D Epsilon to work with them. So from now on, the BCN3D Filaments supports the following materials: ABS, PP, PET-G, PA, PLA, TPU and PVA.

Unique Independent Dual Extruder (IDEX) System

Multiple Print Modes

Combining this massive build volume with our Independent Dual Extrusion (IDEX) technology, which allows print modes such as Mirror and Duplication, the BCN3D Epsilon turns out to be the perfect tool for cost-effective batch production.

Print soluble supports

Avoid geometric limitations and print the most challenging parts thanks to soluble supports. Just immerse the model into water and watch the supports vanish. Print at large scale using water-soluble supports, or fit multiple parts on a build plate, so you can get the dimensions you designed for.

High Performance Extrution System

Bondtech™ Extruders and e3D™Hotends –  using the high-tech Dual Drive Gears by Bondtech and e3D™ hotends, the BCN3D Epsilon offers a solid and reliable outcome, no matter the filament used.

Two Productive Print Modes

Duplication mode

Print the same model with both toolheads simultaneously and double the printing capacity.

Mirror mode

Print the model and its symmetrical part at once, increasing iteration speed and shortening design times.

Videos

Sit back and enjoy some videos about this 3D printer

Please subscribe to the Dream 3D YouTube channel…

Reviews

See what the critics say

the best Sigma yet

All3DP

Specification

Lets get down to detail

Printer and Printing Properties
TechnologyFused Filament Fabrication (FFF)
Print headIndependent Dual Extruder (IDEX)
Build volume420mm x 300mm x 400mm X,Y,Z
Filament diameter2.85 mm
Layer resolution0,05 – 0,5mm (depending on the nozzle diameter)
Step accuracy X, Y, Z12.5 microns / 12.5 microns / 1 micron
Build plateHeated
Material typesPLA, PVA, PET-G, TPU, ABS, PP, PA, Fiber filled materials. Only with Hotend X (0,6mm): PP GF30, PAHT CF15.
Build plate temperature120°C Maximum
Build chamber temperature60°C
Extruder temperature300°C Maximum
Build plate levelingMechanical/Auto leveling
Nozzle diameter0,4mm (installed) / 0,6mm / 0,8mm / 1,0mm / Hotend X: 0,6mm
Operating sound49 dB(A)
Maximum Power Consumption840W
ConnectivityWireless connectivity
DisplayColour touchscreen
Physical Dimensions
Dimensions530mm x 690mm x 900mm*
Net weight37 kg (without filament spools)
Shipping weight46 kg
Shipping box dimensions600mm x 800mm x 1185mm
Software
Supplied softwareBCN3D Cura
Supported OSMacOS, Windows and Linux
Cloud software control· Send print jobs · Monitor printing progress · Pause/Stop print jobs
File typesSTL, 3MF, OBJ, AMF
Warranty and service
Warranty period1 year
