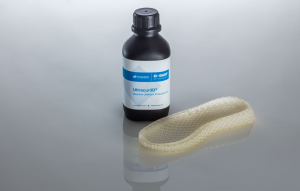

BASF Forward AM Ultracur3D® EL 60 | 1 kg

Reactive Urethane Photopolymer for Elastic Applications

Ultracur3D® EL 60 by Forward AM is a very versatile reactive urethane photopolymer for highly Elastic applications, combining very good torsional strength and elongation at break with high softness (Shore 71A) and low water uptake. It shows almost no compression set over time, and is very easy to print.

Example Applications

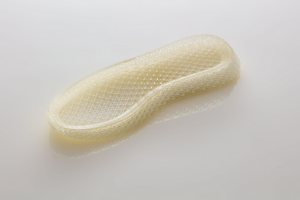

• Footwear
• Prototyping
• Cushioning pads
• Flexible grip

Benefits at a Glance

• Low hardness (Shore 71A)
• Low water uptake
• Very easy to print
• Almost no compression set

Ultracur3D® EL 60 rebound behavior

High speed videos of a drop tower test of a steel ball (~130g) onto a lattice structure (60x60x22mm³) from 0.95m height

• The Ultrasim® material model can also be used for simulating flexible materials
• Depending on the material’s energy dissipation the Ultrasim® material model can be adjusted to reflect the correct rebound behavior

Data Sheets

 Download Technical Data Sheet
