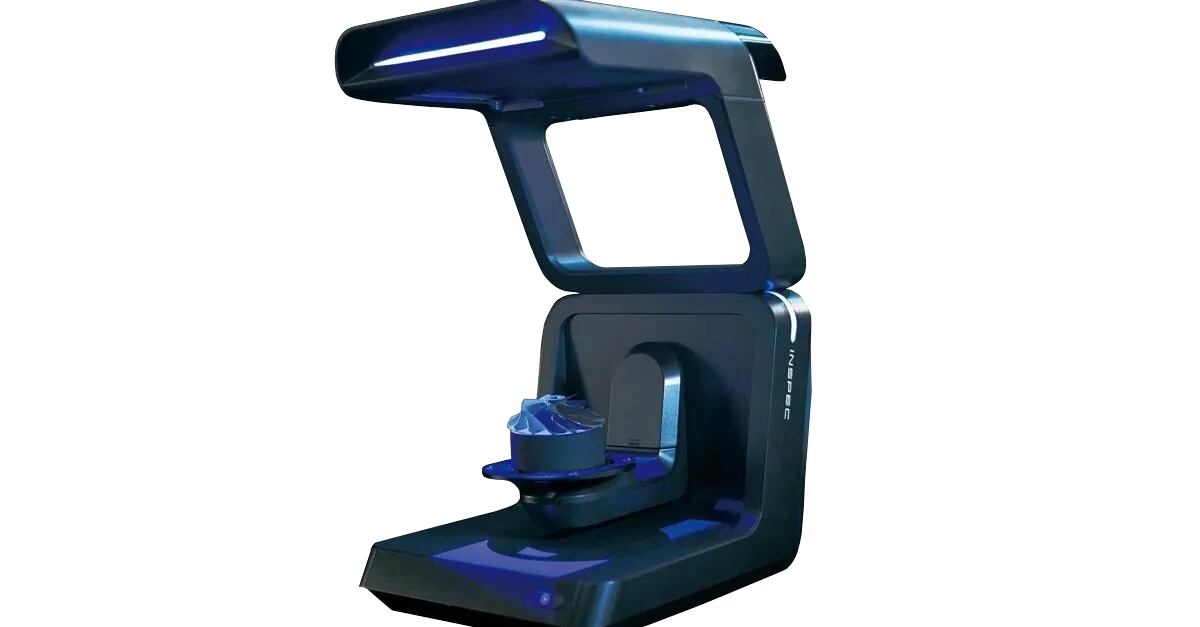

AutoScan DS MIX

Sale

Original price was: £8,400.00.Current price is: £8,150.00. (excl. VAT)

A high-end dental 3D scanner developed by Shining 3D.

With open design and modular structure, this scanner can capture fine details with high accuracy and efficiency to fulfill a range of demands within the dental industry including crown & bridge, implant, bar etc

Please scroll down to find full product specs, features, videos and more 👇

Categories 3D SCANNER TYPE, 3D SCANNERS, 3D SCANNING, ALL 3D SCANNERS, ALL TECH, BRANDS, Dental 3D Scanners, DENTAL TECH, SHINING 3D

Original price was: £8,400.00.Current price is: £8,150.00. (excl. VAT)

Availability: 1 in stock

Sale

Original price was: £8,400.00.Current price is: £8,150.00. (excl. VAT)

Need help? info@dream3d.co.uk / 02070888163

Availability: 1 in stock

Add To Wishlist

View Wishlist

3% off

Quick View

AutoScan DS MIX

(excl. VAT)

Add to cart

Ongoing Tech Support

Thousands of products available for next day delivery

We accept:

Product Details

Pictures & Videos

Buying Options

Product details

Some Key Specs

2×5.0 MP cameras
Accuracy ≤7μm
Intelligent scan
High-end implant and veneer applications

ULTRA-FINE DETAILS

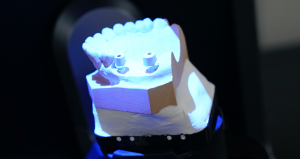

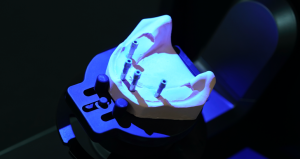

Thanks to dual 5.0 MP high resolution cameras, AutoScan-DS-MIX can perfectly capture edge lines of abutments and features of scan bodies.

HIGH ACCURACY

Scan accuracy ≤7μm assures reliable scan result.

HIGH EFFICIENCY

AutoScan-DS-MIX supports high efficiency scan mode: 13 seconds for scanning a full arch. With All-in-one scan it can improve scan efficiency by approx. 30%.

Note: speedy mode for impression; default mode for others

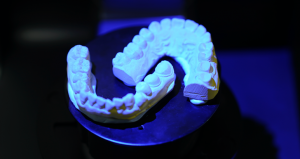

ALL-IN-ONE SCAN

Non-separated full jaws scan improves scan process efficiency by approx. 30%

INTELLIGENT ADD-SCAN

With the scan software supporting automatic detection of unscanned surfaces and automatic add-scan, AutoScan-DS-MIX offers intuitive user experience.

SCREW CHANNEL SEALING

Users can seal the screw channel in the scan software, which optimizes the scan workflow.

HIGH COMPATIBILITY

Export .stl and .ply format, flexibly integrated in CAD/CAM solutions.

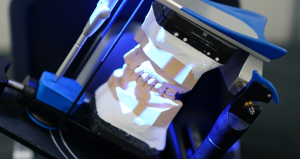

ARTICULATOR SCAN

AutoScan-DS-MIX supports not only dynamic and static two scan modes for most common articulators, but also supports articulator transfer for Artex, Kavo, SAM and Bio-Art.

VERSATILE APPLICATION

AutoScan-DS-MIX supports multiple dental scan applications, including abutment, scan body, articulator, veneer, non-separated model, all-in-one, impression, texture etc.

Specification

Camera Resolution	2 x 5.0MP
Accuracy	≤ 7 µm (ISO12836)
Scan Time	6 s for bite scan; 13 s for upper / lower jaw scan; 18s for 1-4 dies scan; 33 for 5-8 dies scan; 32 s for impression scan **
Articulator Scan	Dynamic / static; support articulator transfer
Output Format	STL, PLY
Light Source	Blue Light
Dimension	238 mm * 340 mm * 447 mm
Weight	7.5 kg
Interface	USB 3.0
Power Supply	DC24 V
